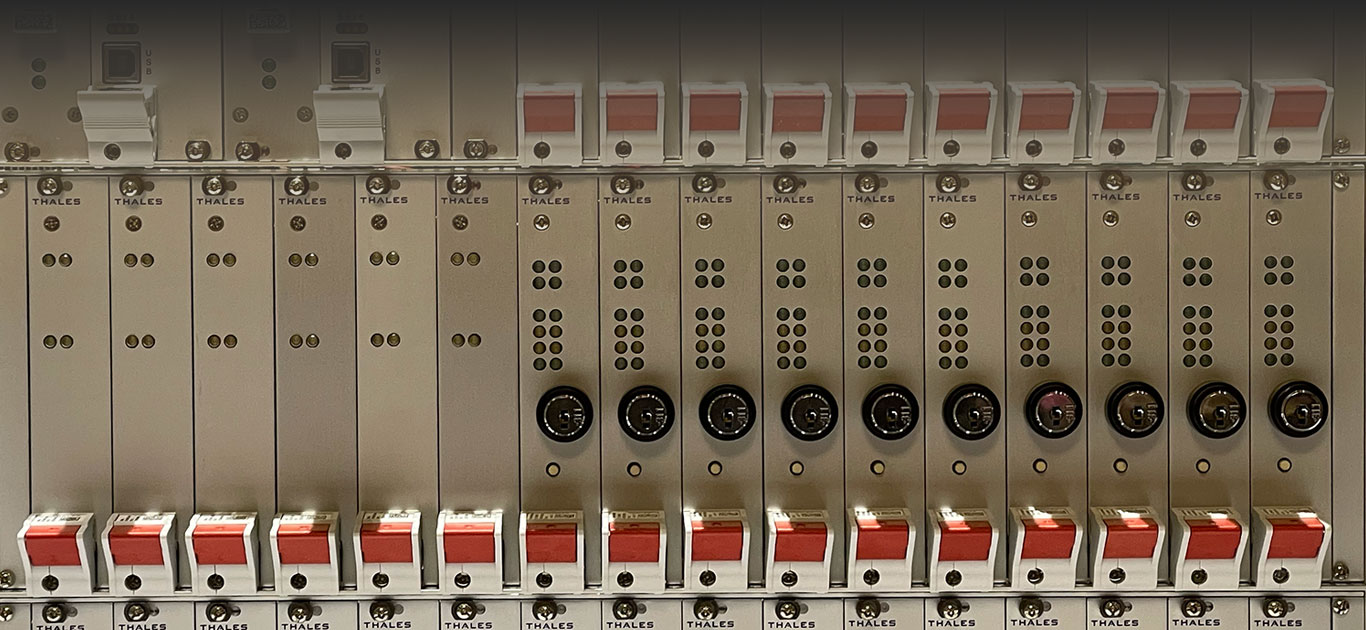

Digital Axle Counter
Complete Digital Solutions For Enhanced Safety & Reliability
For decades, Eldyne’s Multi Section Digital Axle Counters, (Model AzLM) have been known for their reliability, availability, and high levels of safety. To meet the ever-increasing usage and applications, its scalability and its ability to control large areas reliably has made our MSDAC system the lifeline of Signalling System in India.
Eldyne, as Key Industrial Partner of Thales, introduced AzLM in Indian Railways way back in 2002. The AzLM system is approved by German Federal Railway Authority (EBA) and cross approved by RDSO.
AzLM system facilitates a wide range of benefits in achieving functionality, connectivity, seamless integration and diagnostics required for Signalling Solutions.
The system guarantees reliable and fail-safe wheel detection with exceptionally high immunity against EMI covering a diverse range of wheel types and profiles. Today the system is present in more than 40 countries covering arctic to subtropical and desert regions too.
In India, we have the highest installation base of MSDAC system, spanning across all the Zonal Railways and Metro Railways.
Eldyne, as Key Industrial Partner of Thales, introduced AzLM in Indian Railways way back in 2002. The AzLM system is approved by German Federal Railway Authority (EBA) and cross approved by RDSO.
AzLM system facilitates a wide range of benefits in achieving functionality, connectivity, seamless integration and diagnostics required for Signalling Solutions.
The system guarantees reliable and fail-safe wheel detection with exceptionally high immunity against EMI covering a diverse range of wheel types and profiles. Today the system is present in more than 40 countries covering arctic to subtropical and desert regions too.
In India, we have the highest installation base of MSDAC system, spanning across all the Zonal Railways and Metro Railways.
Major Advantages
— Scalable and expandable
— One of the highest MTBF figures
— Suitable for all the applications in Indian Railways
— Safety Integrity Level (SIL4)
— Minimal life cycle cost
— Minimum usage of copper cable
— Operates in both copper and fibre media
— Virtual supervisory section can be created for self-acting resolution of disturbances
— One of the highest MTBF figures
— Suitable for all the applications in Indian Railways
— Safety Integrity Level (SIL4)
— Minimal life cycle cost
— Minimum usage of copper cable
— Operates in both copper and fibre media
— Virtual supervisory section can be created for self-acting resolution of disturbances
Key Features
— The AzLM system offers both Drill Type and Clamp Type Rail Contact
— Vital SIL4 2oo2 Central Axle Counter Evaluator (ACE) approved by RDSO
— Vital SIL4 2oo3 Central Axle Counter Evaluator (ACE) approved by EBA
— System available in 3 different configurations to suit the requirement
— Wheel Detection up to 380 kmph
— Max. 32 Detection Points per ACE
— Max. 4 sections per Detection Point
— Max. 16 (external) Neighbour ACE Detection Points
— Max. 4 Neighbour ACE connections
— Serial and Parallel Interface to the Electronic Interlocking System
— Supports WNC + protocol to interface with Electronic Interlocking over Serial Interface
— Both copper and fibre can be used as communication media
— Maximum DP distance from ACE is up to 13 kms. over copper
— Universal I/O Slots of ACE. Accommodation of I/O Cards in any combination makes system flexible
— DP and section mapping through soft configuration
— Rail Contact integral cable can be extended up to 30 meter using adapter
— System offers both physical supervisory section and virtual/meta supervisory section optionally for auto resetting
— Vital SIL4 2oo2 Central Axle Counter Evaluator (ACE) approved by RDSO
— Vital SIL4 2oo3 Central Axle Counter Evaluator (ACE) approved by EBA
— System available in 3 different configurations to suit the requirement
— Wheel Detection up to 380 kmph
— Max. 32 Detection Points per ACE
— Max. 4 sections per Detection Point
— Max. 16 (external) Neighbour ACE Detection Points
— Max. 4 Neighbour ACE connections
— Serial and Parallel Interface to the Electronic Interlocking System
— Supports WNC + protocol to interface with Electronic Interlocking over Serial Interface
— Both copper and fibre can be used as communication media
— Maximum DP distance from ACE is up to 13 kms. over copper
— Universal I/O Slots of ACE. Accommodation of I/O Cards in any combination makes system flexible
— DP and section mapping through soft configuration
— Rail Contact integral cable can be extended up to 30 meter using adapter
— System offers both physical supervisory section and virtual/meta supervisory section optionally for auto resetting

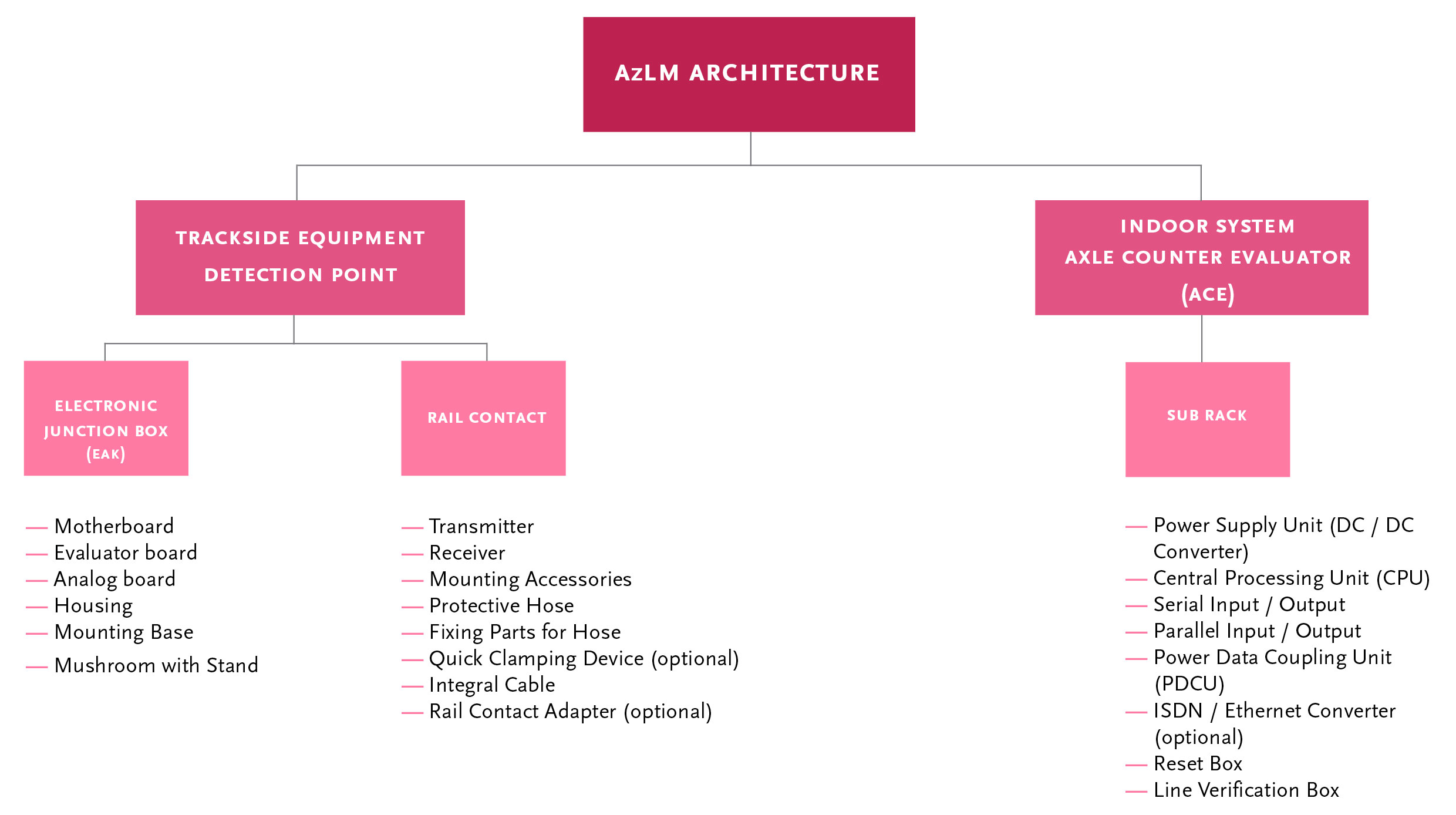

AzLM Architecture
Rail Contact Variants

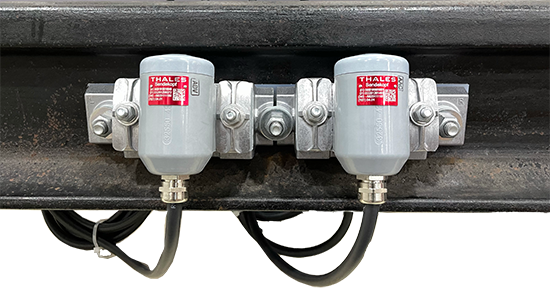

SK30H - Drill type Rail Contact
It is an IP 67 protected classical wheel sensor consisting of two sets of transmitter and receiver coil operating at two different frequencies with integral cable, having standard length of 4 meters, 5.5 meters and 8 meters.
SK30K - Clamp Type Rail Contact (Drill Option)
It is an IP 67 protected slimline wheel sensor consisting of two sets of transmitter and receiver coil operating at two different frequencies with integral cable, having standard length of 4 meters, 5.5 meters and 8 meters. Retro fitment with classical type is possible.
QCD30K - Quick Clamping Device
It is a clamp for mounting slimline sensor on rail web without drilling
It is an IP 67 protected classical wheel sensor consisting of two sets of transmitter and receiver coil operating at two different frequencies with integral cable, having standard length of 4 meters, 5.5 meters and 8 meters.
SK30K - Clamp Type Rail Contact (Drill Option)
It is an IP 67 protected slimline wheel sensor consisting of two sets of transmitter and receiver coil operating at two different frequencies with integral cable, having standard length of 4 meters, 5.5 meters and 8 meters. Retro fitment with classical type is possible.
QCD30K - Quick Clamping Device
It is a clamp for mounting slimline sensor on rail web without drilling
